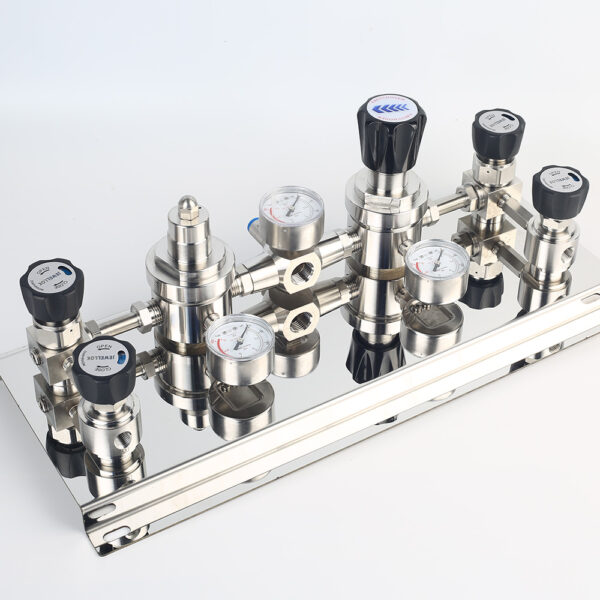

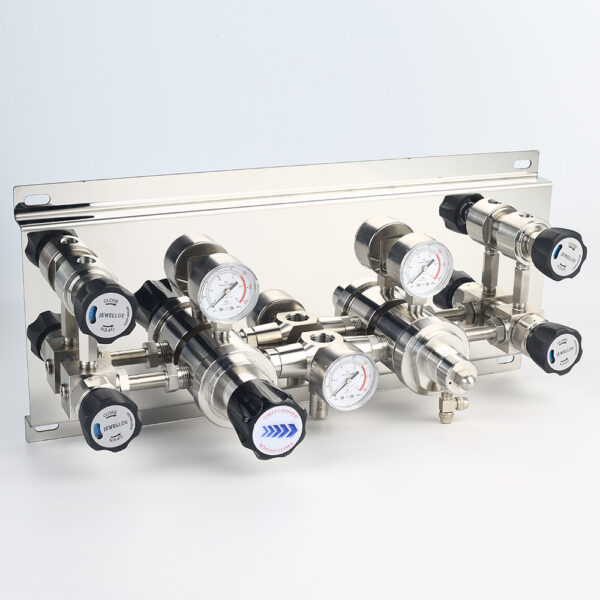

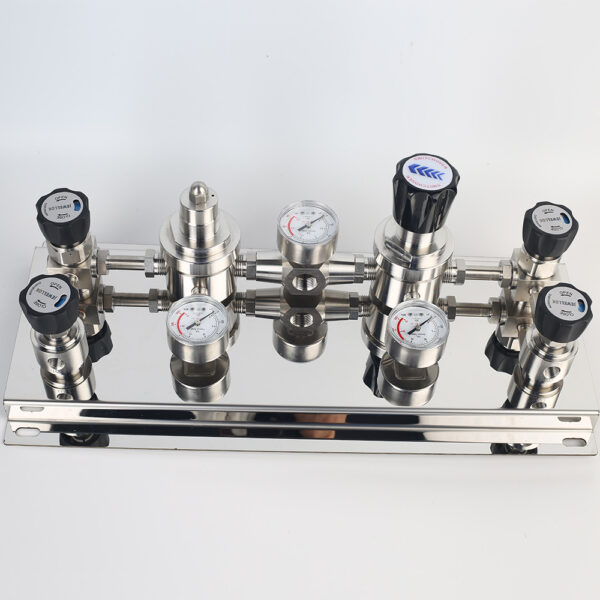

Stainless Steel Single Stage Semiconductor Grade Pressure Control Module Pressure Control Panels JSP-6A Series

Product Features

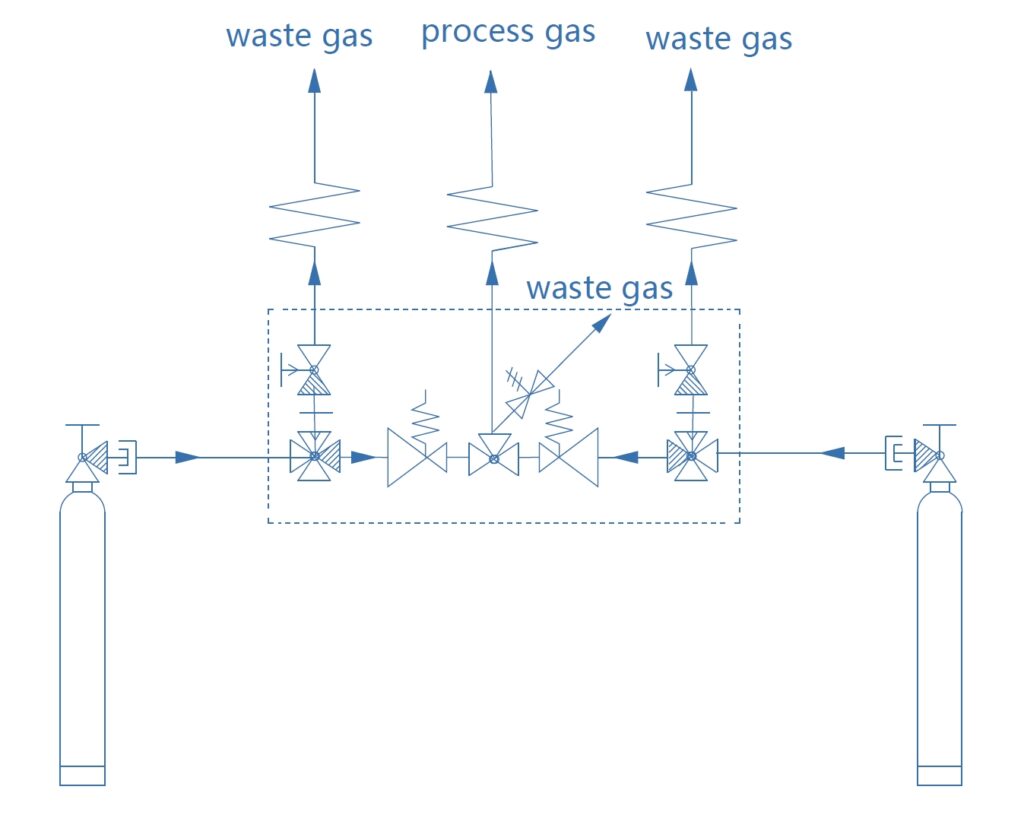

• Pressure control panel with automatic change-over function
• VSR-3 Series single-stage regulator
• Brass chrome plated body for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0
• Stainless steel 316L body and bonnet for corrosive gases
• Modular design
• Diaphragm type shut-off valves
• Suitable for inlet pressure up to 300 bar
• Easy installation into safety cabinet for gas cylinders
• Tested for use with oxygen

Typical Applications
• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment

Technical Data

Type:	single-stage
Inlet pressure P1:	max. 300 bar

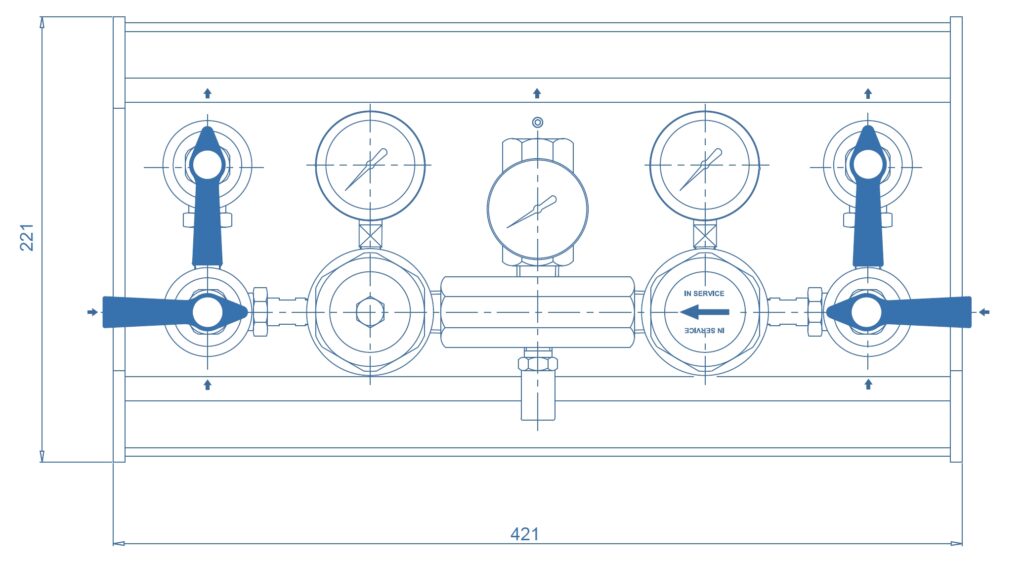

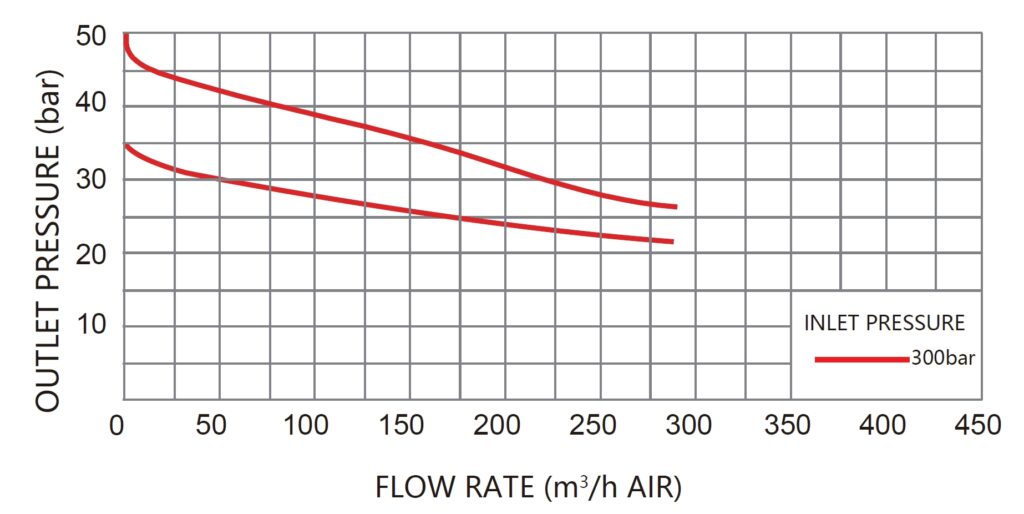

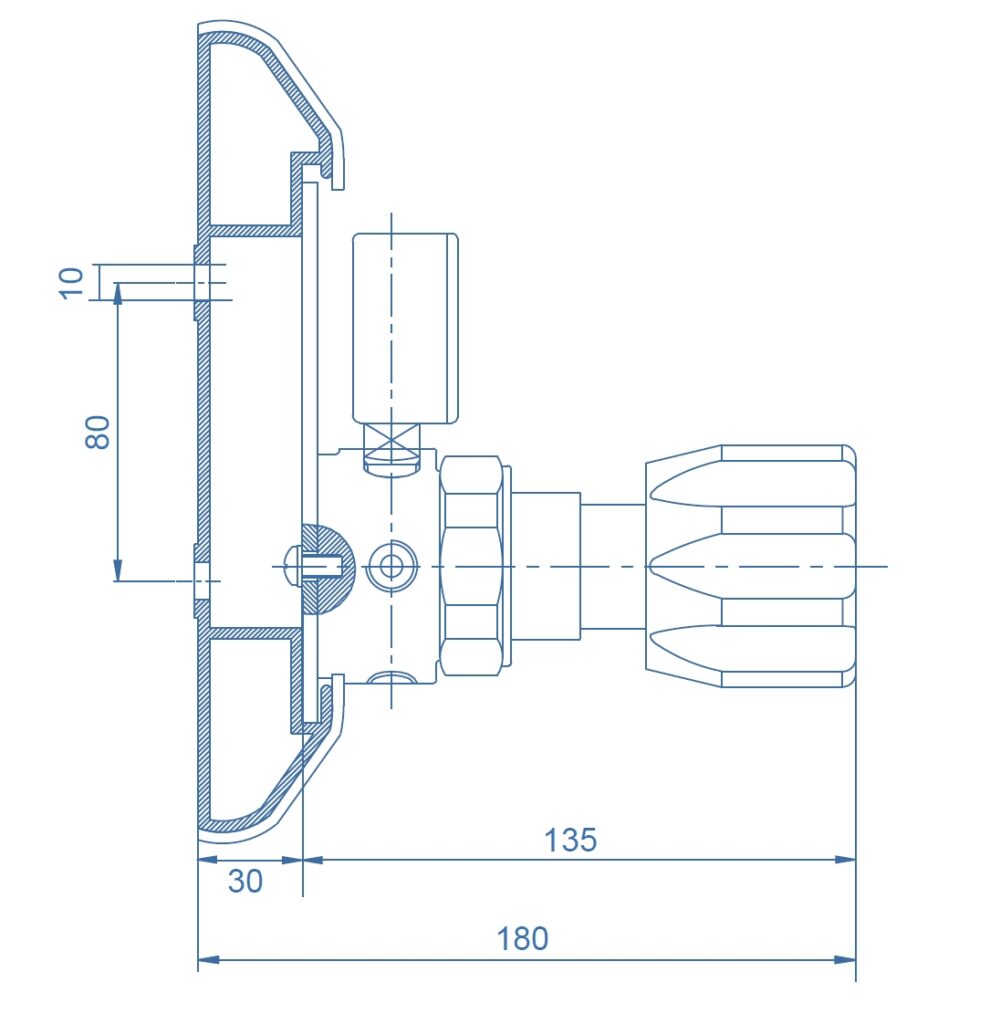

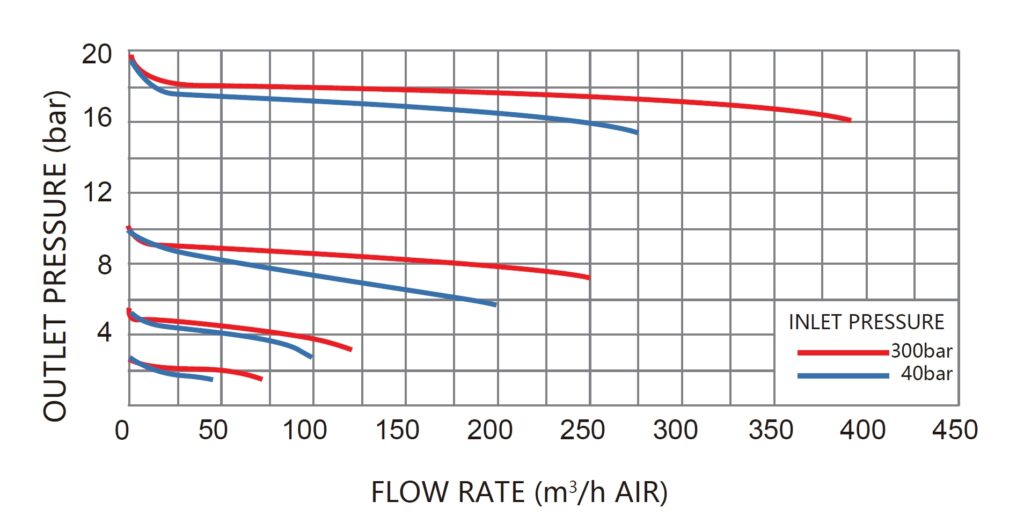

Outlet pressure P2:	2/4/10/20/35/50 bar
Materials

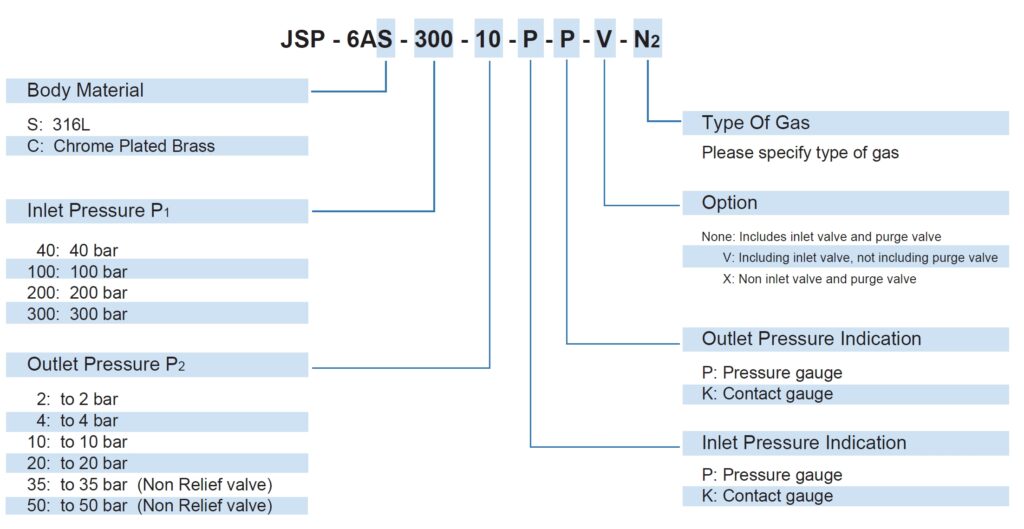

Body regulator and valves：	see ordering info
Valve seat (regulator):	PCTFE
(shut-off valve):	PCTFE
Diaphragm (regulator):	Hastelloy® C276
(valve):	Elgiloy®
O-ring:	Viton® (FKM)
(option)	Kalrez® (FFKM)
Filter:	SS 316L
Inlet connection:	1/4”NPT(F)
Outelt connection:	1/2”NPT(F)
Temperature range:	-30℃ to +74℃
Leak rate (to atmosphere):	1×10^-8 mbar I/s He
(via seat):	1×10^-6 mbar I/s He
Weight:	6.8kg
